Alternate Options
-
"The Bare Essentials"
Regular price $6,850.00 USDRegular price -
"The Frame"
Regular price $2,350.00 USDRegular price -
"The Upper"
Regular price $1,500.00 USDRegular price -
On-Site Assembly - Contact Us
Regular price $0.01 USDRegular price
6 Degrees of Freedom
Large motion, Small footprint
Actuator Travel: 380mm
Maximum speed: 500mm/s
Minimum Footprint : 2.3m x 2.3m
Heave: -225mm to +215mm
Surge: -250mm to 250mm (-450mm to +315mm max)
Sway: -250mm to 250mm (-345mm to +345mm max)
Roll: -18deg to +17.5deg
Pitch: -19deg to +19deg
Yaw: -30deg to +30deg
* For maximum surge and sway it is recommended to secure the base to the ground.
Endless Adaptability
Being Aluminium extrusion, the world is your oyster when it comes to peripherals and fitting aftermarket add-ons. Whether utilising the T-Slots with T-nuts or 90deg brackets and pivot connectors, you'll find a way to make it work.
Stand- Alone

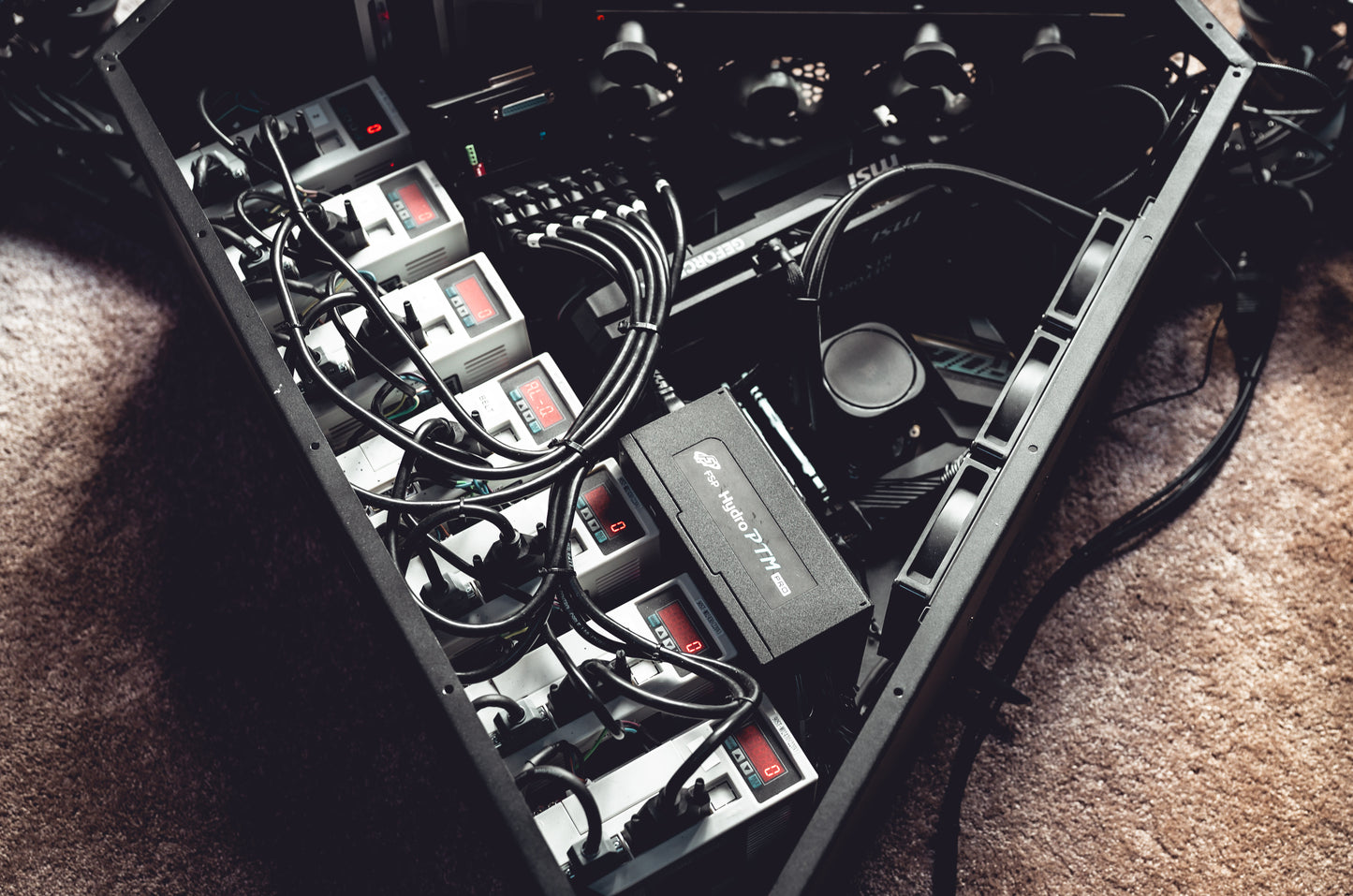

With room in the base for 7 Servo drivers, a Full sized ATX motherboard and a GPU up to 340mm long, the only cable coming from your simulator will be a single power plug. Your entire simulator will be self sufficient and it will be the end of messy cables.
Silent, Fast, Strong and Reliable
Quality components, Direct drive motors and Self lubricating polymers ensure the quietest operation. Belt and bearing noise is a thing of the past. Race while everyone is sleeping.
Paired with 10mm pitch ballscrews a theoretical 500mm/s can be achieved while carrying upwards of 350kg
Built to last the test of time.
